In the realm of modern construction and manufacturing, innovation is the key to efficiency and quality. One such revolutionary advancement lies in the combined application of magnetic formwork and magnetic chamfer strip.


Magnetic formwork has emerged as a game-changer in the construction industry. Its unique design and powerful magnetic force provide a secure and precise way to shape concrete structures. This not only simplifies the installation process but also ensures the consistency and accuracy of the formwork, reducing the risk of errors and rework.


Complementing the magnetic formwork is the magnetic chamfer strip. This ingenious addition helps create smooth and aesthetically pleasing corners and edges. The magnetic property ensures a snug fit, preventing any displacement during the concrete pouring process.


The synergy between magnetic formwork and magnetic chamfer strip brings several significant benefits. Firstly, it saves time and labor costs. The quick and easy setup of both components leads to faster project completion. Secondly, it enhances the overall quality of the structure. The precise shaping and seamless corners contribute to a more durable and visually appealing end product.


Moreover, this combination is highly adaptable to various project requirements and designs. Whether it's a large-scale commercial building or a small-scale industrial component, the magnetic formwork and magnetic chamfer strip can be tailored to meet specific needs.


In conclusion, the combined application of magnetic formwork and magnetic chamfer strip represents a leap forward in construction technology. It offers a practical and efficient solution that combines precision, quality, and flexibility. Embracing this innovation is the way forward for those seeking excellence in their construction and manufacturing endeavors.

Magnetic formwork is composed of metal shell embedded magnet , the height range from 60mm to 400mm , the longest is 3900mm , and all the size and shape accept customized that to be suitable for different precast concrete .



Through the suction action of the magnet , the magnetic formwork is closed contact with the pallet , so that the formwork system that to be formed is fixed. Since the steel shell and the magnet are integral , there will be not movement to ensure that the formwork system is not deform . At the same time , the simple and fast operation of the magnet makes the whole work safer and more stable . With a matching crowbar , the magnet can be pried up and the formwork easily removed from the pallet .



Because the magnet system is located inside the steel shell , the concrete residue or other dirt will not damage the entire formwork system .



With the development of the prefabricated construction industry , magnetic box , insert magnets and other magnetic fixed products have been fully applied in the production process of precast concrete components . The magnetic formwork is embedded magnet chunks inside , compared with the magnet box , it is more convenient for standarder and mass production .

1. Structure

　　Made of permanent high-performance magnetic neodymium Iron Boron magnetic components, spring screw connection accessories, stainless steel 201 or 304 button, Shell Assembly.

　　

2. Operating principle

　　The magnetic box is opened and closed by connecting the screw to the stainless steel button switch by using the adsorption force between the NDFEB magnetic core and the steel mould table. Single or double-sided bayonet design, can be directly stuck in the l-shaped angle die, the two-sided side equipped with 8.8-grade high-strength.

　　Adjustable fastening screw, directly press down to fix the steel side die, thereby strengthening the connection between the magnetic box and the angle steel, effective Prevention of mold displacement.





3. Use Method

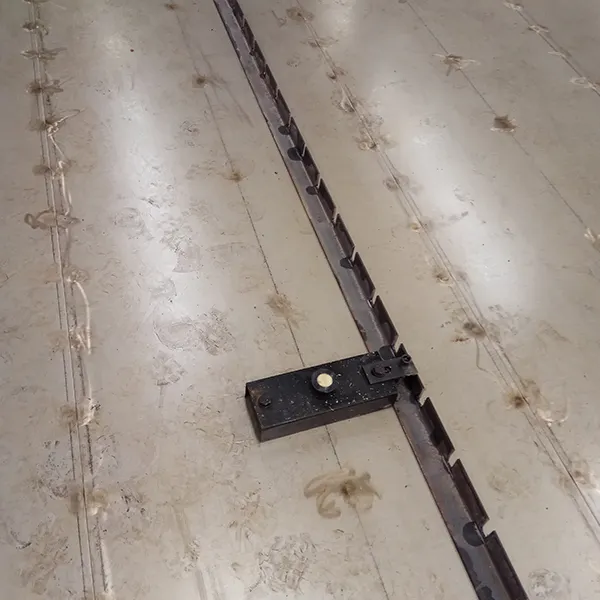

　　When in use, move the magnetic box to a suitable position that needs to be fixed, press the button to make the magnetic core tightly adsorb on the steel mould table. At the same time clamp steel clamping die, tighten the side screw. Or through other connected accessories such as pressure plate to complete the fastening, complete the installation.

　　When the component production is finished, it is necessary to use the professional magnetic box crowbar to pry up the button and release the magnetism of the magnetic box so as to complete the disassembly or shift of the magnetic box.



4. The connection between the magnetic box and the steel mould table is mainly of the following two types:

　　1. High-strength fastening screws are directly pressed down

　　2. Extend The platen to secure



5. Performance characteristics

　　STAINLESS STEEL SHELL, Super Corrosion Resistance, greatly extended the service life of the magnetic box.

　　HIGH-PERFORMANCE ND-FE-B magnet, strong suction, can be firmly fixed on the steel mold, prevent edge mold displacement. In addition, ndfeb material is a permanent strong magnetic, so in principle can be used permanently, non-demagnetization (room temperature work ≤80℃ )

　　By using stainless steel sleeve or epoxy glue to fill between the magnet and the iron parts, the magnet is effectively protected from the magnetic loss caused by collision and corrosion.



6.Specifications

　　450 ~ 2100kg suction, according to the actual mold needs to make the best suction magnetic box. The main suction type of domestic prefabricated component factory is 800KG stainless steel magnetic box, 1000KG stainless steel fixed magnetic box, 2100KG stainless steel magnetic box, etc.



7. application

　　Generally used for steel mold, aluminum mold, plywood wood side mold most of the mold, placed on the steel mold production of various precast concrete components. Widely used in precast stairs, external wall panels, internal wall panels, balconies and other precast components of the production.



8. Points for attention

　　The fastening nut can not be adjusted down, otherwise the magnetic box top open joint surface too much lead to insufficient adsorption caused by edge displacement.

　　The steel die surface of the magnetic box should be flat, and cleaned up before each use. There should be no concrete residue or other particles, so as not to affect the connection between the magnetic core and the die plate, and affect the fixing strength.

　　Before and after use magnet box , the contact surface of the magnetic core must be cleaned, and there must be no concrete or iron filings sticking on the surface, which will affect the adsorption force.

　　Clean the concrete and oil on the assembly regularly, and oil the guide bar regularly to ensure the smooth opening and closing of the core.

　　Do not use hammer and other hard objects, or free fall to the steel surface, otherwise the magnetic core itself strong adsorption may damage the use of the box, or even cause the magnetic core dislocation, damage the magnetic box.

With the development of the construction industry, precast concrete has been regarded as a new generation of construction materials. This construction method has been widely used in many countries around the world. Precast shuttering magnets are one of the most important accessories for precast concrete formwork. It can fix the side rails when pouring concrete to prevent cement from flowing out. SAIXIN shuttering magnets are suitable for various formwork structures such as wood formwork and steel formwork.

It consists of a switchable neodymium shuttering magnet unit, shell with magnetic block and fixing screws .The neodymium magnet and steel plate form a magnetic circuit with a strong attraction force, which is used to fix wooden or steel formwork.There is a control button on the top of the precast concrete magnet. When you press the button, this magnet uses the magnetic circuit holds the formwork firmly on the steel plate.

When you turn off the button, you can easily change magnets position. The two universal threaded holes on the top of the formwork magnet can be equipped with various adapters. You can use our products according to your needs.

In the construction industry, traditional wooden formwork has been widely used to support concrete pouring. However, this traditional formwork system has some inherent problems, such as time-consuming installation and dismantling, vulnerability to damage, and the requirement of significant manpower. To solve these issues, an innovative construction solution has emerged – Shuttering Magnet.



Shuttering Magnet is a revolutionary technology that harnesses the power of strong magnets and a compact design to make the formwork system more efficient, reliable, and convenient. These magnets can be directly installed on steel formwork and provide reliable support and fixation by adhering to the concrete workpiece. Compared to traditional wooden formwork, Shuttering Magnet offers the following significant advantages:



1. Quick Installation and Dismantling: The use of Shuttering Magnet greatly reduces construction time and labor costs. They can be easily placed on the steel formwork without the need for screws or other fixing tools. Moreover, the magnets can be effortlessly removed from the concrete workpiece, making the dismantling process extremely convenient.

2. Strong Holding Force: Shuttering Magnet utilizes the power of strong magnets to provide a secure support force, ensuring that the formwork does not move or deform during concrete pouring. This holding force can resist vibrations and pressures during the pouring process, guaranteeing construction quality and stability.

3. Reusability: Compared to traditional wooden formwork, Shuttering Magnet has a longer lifespan. Made from high-quality materials, they are durable and reliable. Once the concrete pouring is complete, the magnets can be easily removed, cleaned, and maintained for future use.

4. Environmentally Friendly and Energy-Efficient: Shuttering Magnet requires no additional power supply and does not generate noise or pollution. Compared to traditional wooden formwork, they are more environmentally friendly and aligned with sustainable development requirements.

Shuttering Magnet has been widely adopted in various construction projects, including buildings, bridges, tunnels, dams, and more. They play a crucial role in improving construction efficiency, reducing labor costs, and enhancing construction quality. With the ongoing development and innovation in the construction industry, Shuttering Magnet is set to become the mainstream choice for future construction projects.





In conclusion, Shuttering Magnet is a revolutionary construction solution that offers quick installation, strong holding force, reusability, and environmental friendliness. By choosing Shuttering Magnet, you will experience a more efficient, reliable, and sustainable formwork system.
