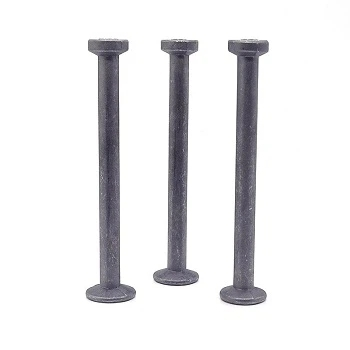

Standard Pin Anchor

Standard Pin Anchor is a type of lifting component pre-buried in concrete with a round or hemispherical head design for attaching spreaders (e.g. duckbill clasps, etc.). It provides a reliable lifting point for precast concrete components (e.g. floor slabs, wall panels, beams and columns, etc.) and withstands tensile and shear forces during lifting.

Inquiry

Write a Review

Product Specification

Product Material：20MN2A
Surface Treatment: sand blasting;Electro galvanizing;hot galvanizing

Products Applications

For lifting prefabricated components of assembled buildings

FAQ

Q: What is the difference between Lifting Pin Anchors and Eye Anchors? How to choose between them?

A: 1)Structural differences: Lifting Pin Anchors connect to external lifting devices via their head, while Eye Anchors allow direct hooking of slings. 2)Applicable scenarios: Lifting Pin Anchors: Suitable for lifting requiring high precision, concealment, or frequent disassembly (e.g., formwork support, equipment installation). Eye Anchors: Ideal for simple hooking needs or one-time lifting (e.g., prefabricated wall panels). Selection advice: Base your choice on lifting frequency, force direction (whether multi-angle adjustment is needed), and aesthetic requirements.

Q: Can Lifting Pin Anchors withstand lateral tension?

A: Limitations: Lifting Pin Anchors have weak resistance to lateral forces, as they are designed to primarily bear axial tension. Solutions: If lateral forces exist, add shear-resistant reinforcement bars or switch to lateral force-resistant structures like Eye Anchors.

Q: During lifting, if the head of a lifting anchor fractures, what are the possible causes?

A: Common causes: 1)Overloading or insufficient safety factor. 2)Material defects (e.g., internal cracks, corrosion). 3)Size mismatch between the lifting device and the anchor head, causing stress concentration.
