Shuttering Magnet, Precast Concrete Magnets for Architecture Buildings, Shuttering Magnet for Concrete Formwork System
Home » Products » Shuttering Magnets » Shuttering Magnet, Precast Concrete Magnets for Architecture Buildings, Shuttering Magnet for Concrete Formwork System

Shuttering Magnet, Precast Concrete Magnets for Architecture Buildings, Shuttering Magnet for Concrete Formwork System

◆ Item no: SX-1800
◆ Vertical Suction: ≥ 1800 kgs
◆ Size: 320 x 120 x 60mm
◆ Box Material: iron
◆ Be used with customized adapter
◆ Suitable mold height recommended: 100-250mm

  • SX-1800
  • 2pcs per carton
  • 15days
  • SAIXIN
  • rare earth magnets and metal box
  • 320X120X60MM
  • 1800kgs above
  • 7.2kgs
  • blackening
  • 1-3 years

Product Description

Vertical suction:  ≥1800kgs

Size: 29 x 12 x 6 cm

N.W.: 7.2kgs

Be used with customized adapter

Be suitable for fixing all kinds of special-shaped mold and large mold

Suitable mold height recommended: 100-250mm


We are the sole Chinese manufacturer to make this part, and supply high quality but very competitive price comparing to Europe manufacturer. We are also interested in developing new style according to customers' requirement.


We have these parts in stock and welcome to your order for sampling. You will find we are the best supplier for this part concerning quality and cost.

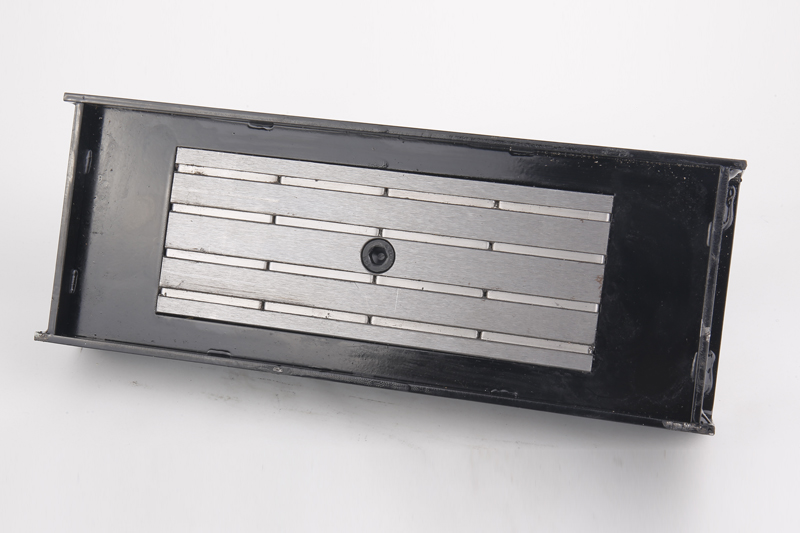

Precast concrete magnet box is a new magnetic assembly which is used to fix the formwork in precast industry. The assembly consists of some strong neodymium magnets and steel plates which form to certain designed magnetic circuit. This magnetic circuit provides very much stronger adhesive force to any ferrous workpiece. But the magnetic power is shielded and controlled by the thick iron box. We develop the push ON/OFF button to open or close the magnetic power outside of the box.


KEY BENEFITS OF SHUTTERING MAGNETS:

1. Reducing the complexity and time of the installation of formwork (up to 70%).

2.Universal use for mass production of concrete products, and piece products of all forms on the same steel table.

3. Eliminates the need for welding, shuttering magnets does not damage the steel table.

4. Makes it possible to produce radial products.

5. A small cost of a set of magnets. The average payback of about 3 months.

6. The main advantage of the shuttering magnets is that you do not need to have a lot of different forms for different products, you need to have a set of magnets, adapters for different height boards and steel table.

800800-1

Instruction

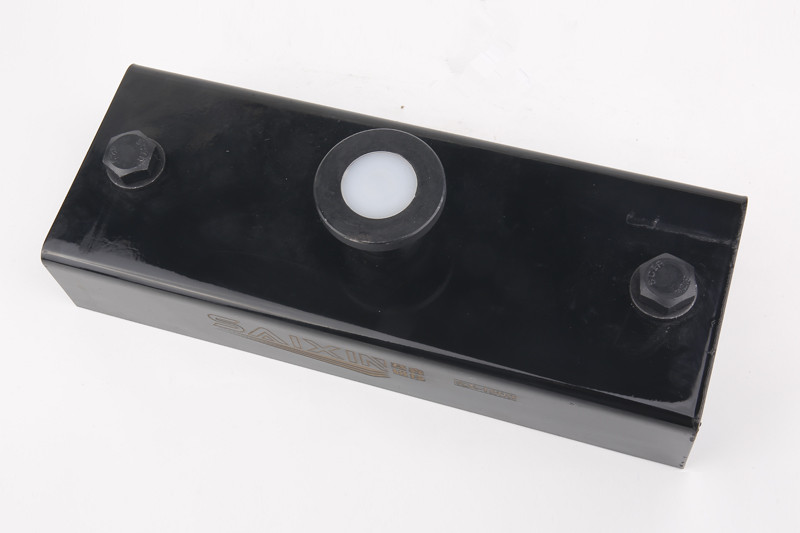

There is an ON/OFF button on the top of the shuttering magnets. At work state, press the button, magnet box fixed the shuttering on the platform firmly, Pull up the button with lever, magnet box is at closed state and can be moved.
(1) The suction of magnet box is based on thickness and smooth degree of the platform, the thicker and smoother the better. And lateral shear force depends on the suction of magnet box and the friction coefficient of the touching surface.
(2)Two screws on two sides of the magnet box can be connected with different adapter, fix different formworks, such as steel angle, steel channel, etc.
(3)SAIXIN® magnet box is made of permanent neodymium magnets, In theory, if the MAX working temperature is below 80℃ and the magnet is not damaged or corroded, the suction will be lasted forever.

Maintenance And Safety Guidelines

(1)In order to avoid the magnet box damaging, do not crash and use hard tools to knock it. Please knock with rubber hammer if must use tools.

(2) Magnet box touching surface should be kept clean and smooth, avoid the scrap iron or concrete grout going inside the box, otherwise the button flexible degree will be affected and the magnet will be slanted, caused the magnet can not be fixed on the platform closely and the suction weakened.

(3)As suction of magnet box is very strong, please avoid closing it to precision instruments,electronic instruments and other iron material. Once they absorb together, it is difficult to separate. Suggest making special tool box to keep them.

(4)Magnet box touching surface should be kept clean and smooth always. And it should be oiled when storage. Max working and storage temperature should be below 80℃,and no corrosive medium around. Always check if the working surface fix the platform closely and the button flexible degree to ensure the normal use.

(5) After using , clean the magnet boxes, and put on stainless steel tool holder. Do not use iron tool holder.
